Fast & Accurate

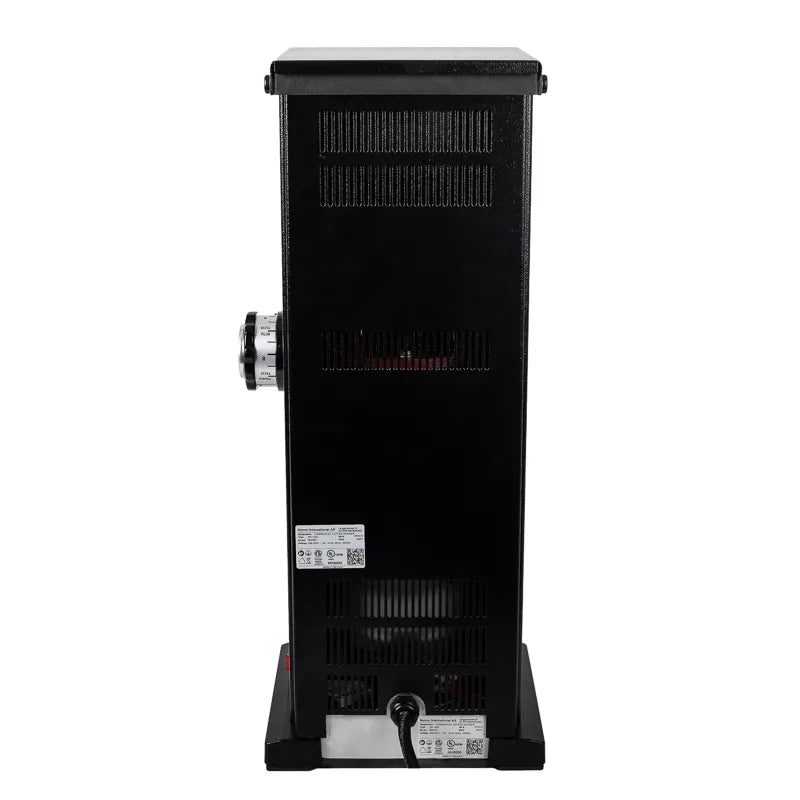

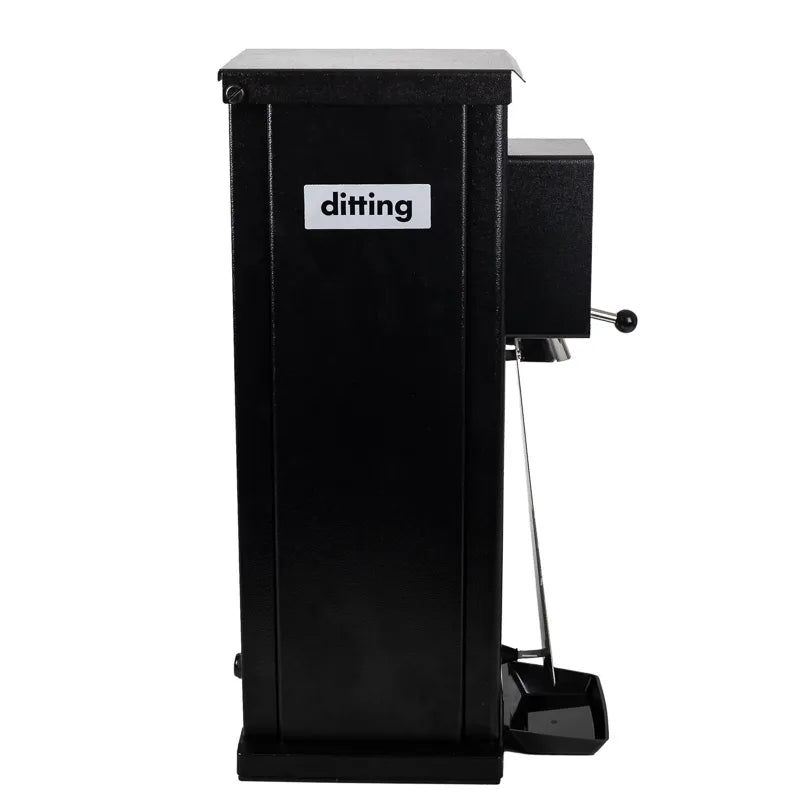

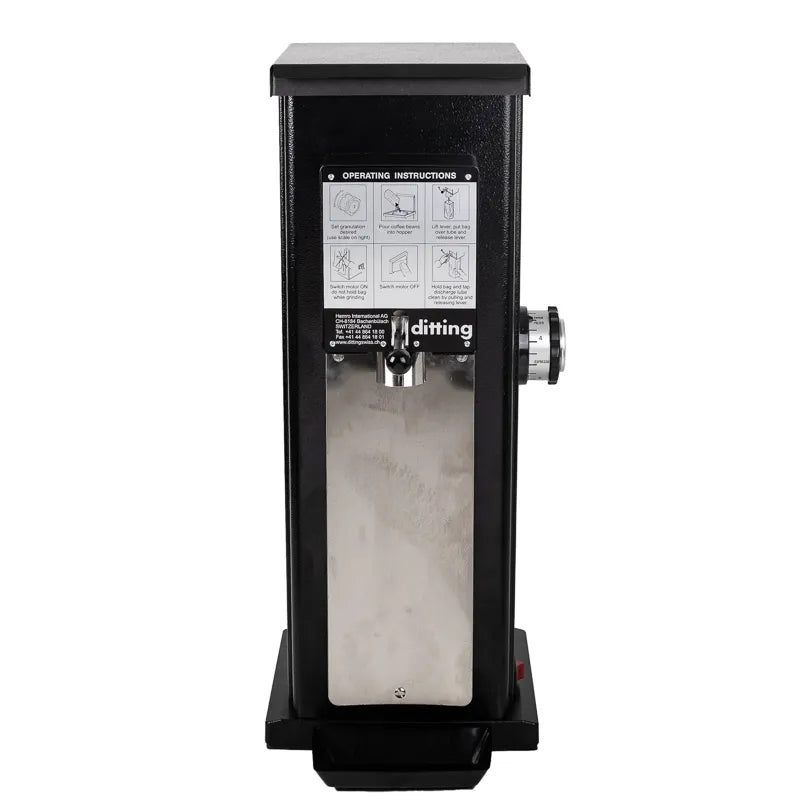

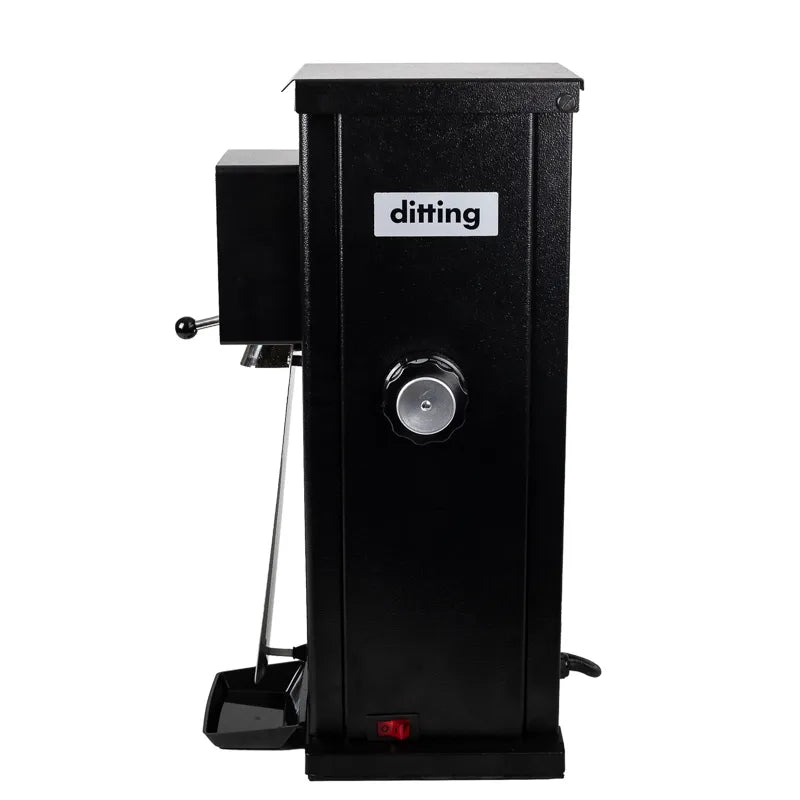

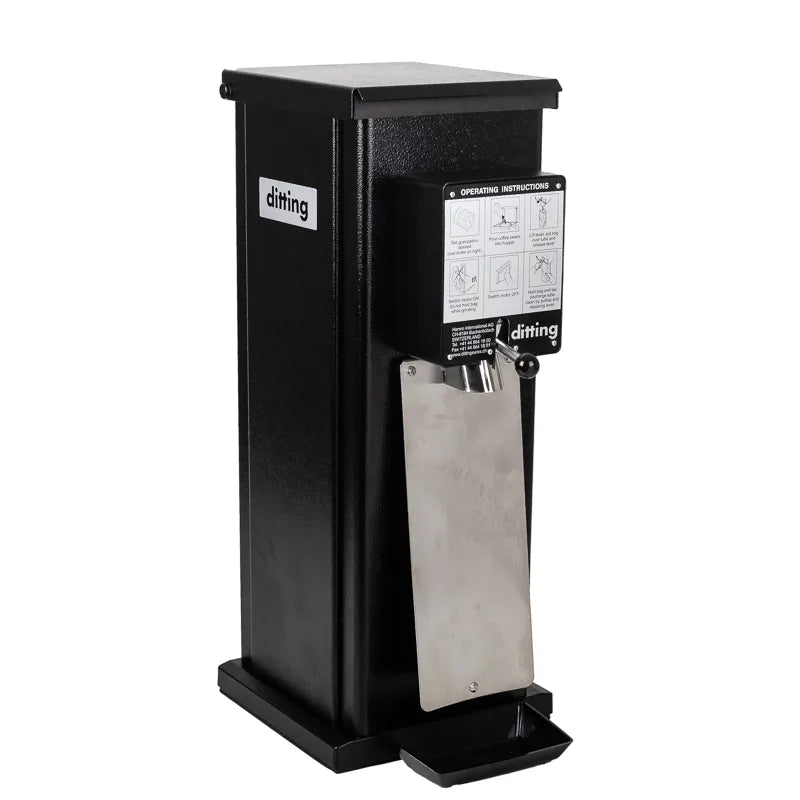

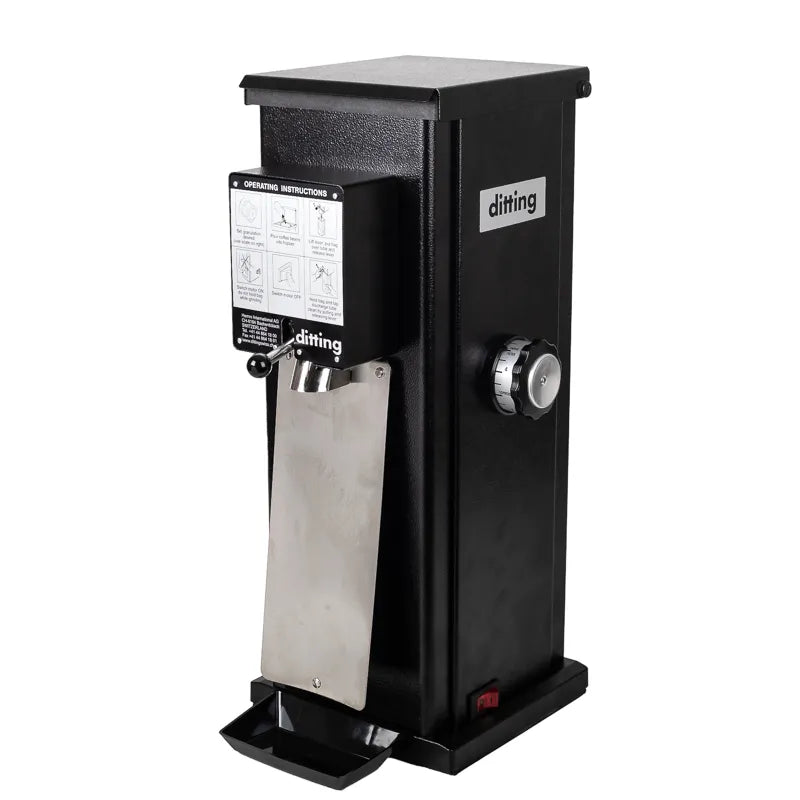

The KR1403 is a trusted and reliable grinder offered by Ditting, and is an optimal choice wherever fast and uniform grinding is necessary. At its core, the KR1403 offers superior performance as a retail bag grinder. With its spring-loaded bag clamp and chute knocker and its vibrating steel shaker plate, the KR1203 ensures that all ground coffee lands in the chosen receptacle, be it a bag, bin, or dosing cup for when smaller amounts of coffee are needed.
Specifications
| Country of Origin: | Germany |
| Burr Material: | Wear-Resistant Steel |
| Burr Size: | 140 mm |
| Burr Life: | 35,000 lbs |
| Hopper Capacity: | 2.4 lbs |
| Grind Speed: | 2,200 g/min |
| RPM: | 1400 (50Hz) |
| Power: | 200-240V/2000W/10A/3 Phase |
| Plug Type: | L15-20P |
| Motor: | 2.7HP |
| Dimensions: | 34 in. (H) x 12.5 in. (W) x 16 in. (D) |
| Weight: | 88 lbs |
Ditting Grinder Comparison Chart
| Model: | 807 Retail | 807 Filter | 807 Lab Sweet | KR1203 Retail | KR1403 Retail | KFA1403 Industrial |
|---|---|---|---|---|---|---|
| Application: | Retail bag grinding, up to 30lbs per day | Retail bag & batch brew basket grinding, up to 30lbs per day. | Retail bag grinding & single dosing for cupping, pour over or espresso, up to 30lbs per day | Retail bag grinding, up to 500lbs per day | Retail bag grinding, up to 1000+ lbs per day | Roasting areas, up to 1000+ lbs per day. |
| Hardware: | Vibrating plate | Adjustable forks & slide chute | Folding platform, metal grounds catch | Vibrating plate | Vibrating plate | Extended chute, built-in shutoff valve |
| Grind Size Range: | 130µm-1,400µm | 130µm-1,400µm | 100µm-1,200µm | 300µm-900µm | 200µm-1,100µm | 200µm-1,100µm |
| Output (lbs/min/800µm): | 2 | 2 | 2 | 5 | 8 | 8 |
| Burr Lifespan (lbs): | 5,500+ | 5,500+ | 15,000+ | 15,000+ | 15,000+ | 15,000+ |
| Hopper Capacity (lbs): | 1.1 | 1.1 | 1.1 | 2.4 | 2.4 | 22 |
| Duty Cylcle: | 45 Sec On/180 Sec Off | 45 Sec On/180 Sec Off | 45 Sec On/180 Sec Off | Continuous run | Continuous run | Continuous run |
| Power: | 120v, 60hz, Single Phase, 6A | 120v, 60hz, Single Phase, 6A | 120v, 60hz, Single Phase, 6A | 120v, 60hz, Single Phase, 13A | 220v, 60hz, Three Phase, 10A | 220v, 60hz, Three Phase, 10A |
| Dimensions WxDxH (inches): | 9 x 14 x 27 | 9 x 14 x 27 | 9 x 14 x 27 | 12 x 16 x 34 | 12 x 16 x 34 | 13 x 16 x 29 |
